RO Pump

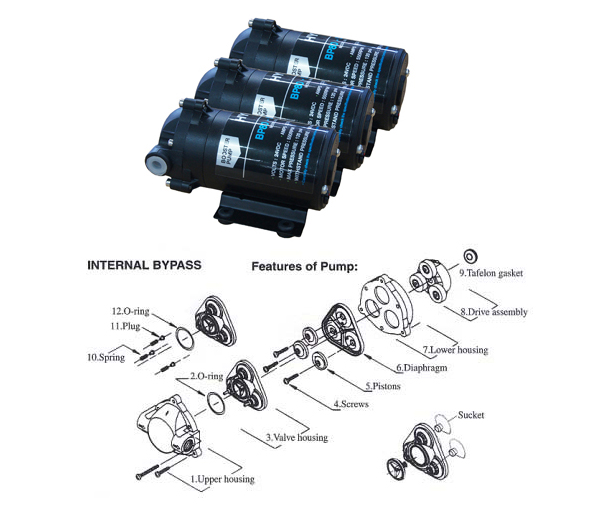

R.O BOOSTER PUMP SERIES



• DP 125-50GB
ITEM INLET WATER PURESSURE DETAILS
VOLTAGE 24VDC
OUT WATER FITTING 3/8"
OPEN FLOW 0.2MPa 2100ml/min, 1 < 0.2A
PERFORMANCE 0.2MPa OUT WATER PRESSURE : 75Psi
FLOW : 550ml/min
1 : 0.4A
MAX PRESSURE 0.2MPa 0.88MPa + / -10%
SELF SUCTION 2M
VOLTAGE TEST 600V / 1min / 1mA

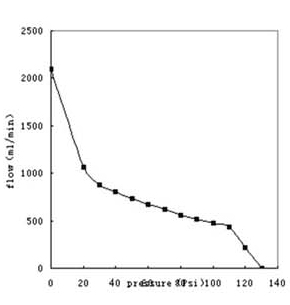

FLOW-PRESSURE PERFORMANCE
PRESSURE(PSI) FLOW(ml/min)
0 2100
20 1065
30 882
40 802
50 735
60 672
70 615
80 557
90 520
100 477
110 435
120 212
130 0


• DP 125-50G
ITEM INLET WATER PURESSURE DETAILS
VOLTAGE 24VDC
OUT WATER FITTING 3/8"
OPEN FLOW 0.2MPa 2100ml/min, 1 < 0.25A
PERFORMANCE 0.2MPa OUT WATER PRESSURE : 100Psi
FLOW : 550ml/min
1 : 0.6A
MAX PRESSURE 0.2MPa 0.88MPa + / -10%
SELF SUCTION 2M
VOLTAGE TEST 600V / 1min / 1mA


FLOW-PRESSURE PERFORMANCE
PRESSURE(PSI) FLOW(ml/min)
0 2100
20 1340
30 1030
40 940
50 850
60 780
70 720
80 660
90 600
100 550
110 500
120 450
135 0


• DP 125-75
ITEM INLET WATER PURESSURE DETAILS
VOLTAGE 24VDC
OUT WATER FITTING 3/8"
OPEN FLOW 0.2MPa 2150ml/min, 1 < 0.3A
PERFORMANCE 0.2MPa OUT WATER PRESSURE : 110Psi
FLOW : 930ml/min
1 : 0.7A
MAX PRESSURE 0.2MPa 0.88MPa + / -10%
SELF SUCTION 2M
VOLTAGE TEST 600V / 1min / 1mA


FLOW-PRESSURE PERFORMANCE
PRESSURE(PSI) FLOW(ml/min)
0 2150
20 1440
30 1340
40 1240
50 1160
60 1050
70 970
80 900
90 830
100 770
110 700
120 630
130 250
135 0


• DP 125-100G(24VDC)
ITEM INLET WATER PURESSURE DETAILS
VOLTAGE 24VDC
OUT WATER FITTING 3/8"
OPEN FLOW 0.2MPa 2200ml/min, 1 < 0.4A
PERFORMANCE 0.2MPa OUT WATER PRESSURE : 125Psi
FLOW : 1100ml/min
1 : 0.85A
MAX PRESSURE 0.2MPa 0.88MPa + / -10%
SELF SUCTION 2M
VOLTAGE TEST 600V / 1min / 1mA


FLOW-PRESSURE PERFORMANCE
PRESSURE(PSI) FLOW(ml/min)
0 2200
20 1630
30 1550
40 1450
50 1369
60 1300
70 1200
80 1100
90 1020
100 940
110 819
120 500
130 0


• DP 125-100G(35VDC)
ITEM INLET WATER PURESSURE DETAILS
VOLTAGE 36VDC
OUT WATER FITTING 3/8"
OPEN FLOW 0.2MPa 2000ml/min, 1 < 0.35A
PERFORMANCE 0.2MPa OUT WATER PRESSURE : 135Psi
FLOW : 1200ml/min
1 : 0.6A
MAX PRESSURE 0.2MPa 0.95MPa + / -10%
SELF SUCTION 2M
VOLTAGE TEST 600V / 1min / 1mA

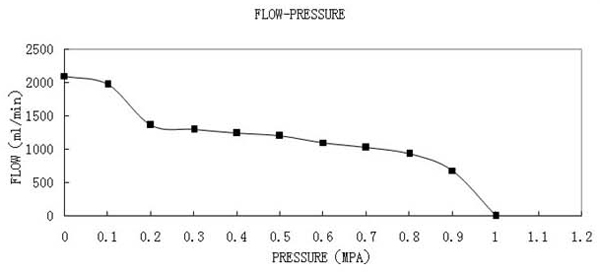

FLOW-PRESSURE PERFORMANCE


• DP 125-150
ITEM INLET WATER PURESSURE DETAILS
VOLTAGE 24VDC
OUT WATER FITTING 3/8"
OPEN FLOW 0.2MPa 2300ml/min, 1 < 0.5A
PERFORMANCE 0.2MPa OUT WATER PRESSURE : 145Psi
FLOW : 1750ml/min
1 : 1.17A
MAX PRESSURE 0.2MPa 0.88MPa + / -10%
SELF SUCTION 2M
VOLTAGE TEST 600V / 1min / 1mA


FLOW-PRESSURE PERFORMANCE
PRESSURE(PSI) FLOW(ml/min)
0 2300
20 2160
30 2040
40 1900
50 1800
60 1710
70 1660
80 1520
90 1420
100 1320
110 1180
120 750
125 0


• DP 125-200W
ITEM INLET WATER PURESSURE DETAILS
VOLTAGE 24VDC
OUT WATER FITTING 3/8"
OPEN FLOW 0.2MPa 2500ml/min, 1 < 0.65A
PERFORMANCE 0.2MPa OUT WATER PRESSURE : 130Psi
W=0.5MPa
FLOW : 1950ml/min
1 : 1.6A
MAX PRESSURE 0.2MPa 0.8~0.9MPa
SELF SUCTION 2M
VOLTAGE TEST 600V / 1min / 1mA

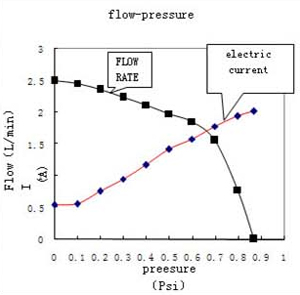

FLOW-PRESSURE PERFORMANCE
