Pressure Reducer
WACO Corp Pressure Reducer
| Items |
Standard Specifications |
| Usage liquid |
Purified water |
| Operating pressure (P1) |
0.2~10KGF/㎠ [0.02~0.98Mpa] |
| Reducing pressure (P2) |
3kgf/㎠±10% |
| Rate flow |
7.0㎖/min ↑ (P1 : 6.0kgf/㎠ P2 : 3.0kgf/㎠ Setting) |
| Pressure resist(Water pressure) |
19.5kgf/㎠ [1.95Mpa] |
| Working Temperature |
1~40℃ |

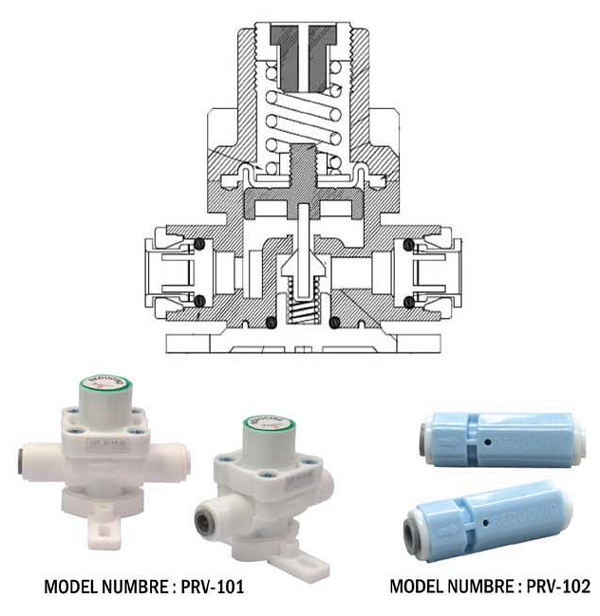

| Valve construction |
Diaphragm type |
| Installing position |
Free |
| P1 |
P2(Reducing pressure) |
Bracket |
Stem OD |
| 0.2~10kgf/㎠ |
3kgf/㎠±10% |
× |
1/4" |
| 0.2~10kgf/㎠ |
3kgf/㎠±10% |
○ |
1/4" |
| P1 |
P2(Reducing pressure) |
Bracket |
Stem OD |
| 0.2~10kgf/㎠ |
3kgf/㎠±10% |
× |
1/4" |
| 0.2~10kgf/㎠ |
3kgf/㎠±10% |
○ |
1/4" |
|
