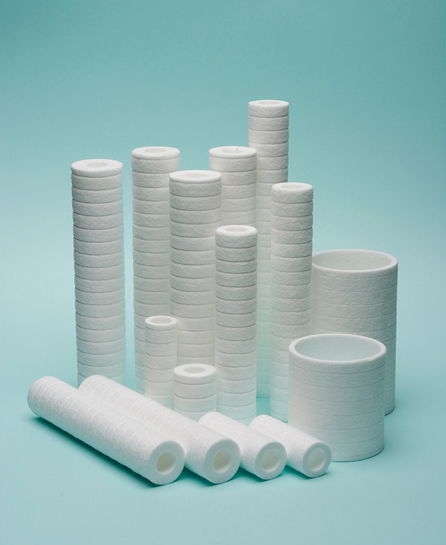

MICRO PP cartridge 10", 20" , 40"
| Mirco PP Cartridge 10”~20” FILTER |
10” |
20” |
10” JUMBO |
20” JUMBO |
| Filtering density, Micron (um) |
0, 5 , 1.0 , 5.0 , 10 , 25 , 50 , 75 , 100 |
| Inner Pressure, kg/㎠ |
7.0 |
| Heat resistance, ℃ |
80 |
| Differential pressure at the time Of exchange, kg/㎠ |
2.0 |
| Materials |
Polypropylene (100%) |
| Standard flux, ℓ/min(250mmX5㎛) |
15ℓ/min |
| Length, mm |
250~253 |
497~500 |
250~253 |
497~500 |
| Inner/Outer dia, mm |
28/60 |
28/60 |
29/112 |
29/112 |
| Product property |
Detailed property |
Merits in use |
| Multi layer structure |
Preforms pre treatment process in outer layer and precise filtering process in inner layer |
The force to collect impurities is large. Filtering efficiency increases and life becomes long. |
| 100% polypropylene |
Has excellent chemical-resistance and heat-resistance Does not cause organic chemical reaction |
Suitable to filtering beverages, Pharmaceuticals and high purity chemicals. |
| Mirco fiber |
Super-minute Melt-Brown method. Multi-layer structure and maximized dust collection space. Advanced filtering efficiency. |
Excellent effect of removing impurities due to precise filtering efficiency. It is possible to remove lots of impurities due to maximization of bold volume.
Absolute Micro cartridge(0.5~1micron)is effective on removal of Giardia and Cryptosporidium |
| Complete combination structure |
Combination materials and adhesives such as surfactants and synthetic resin was not used as a material |
No mesh screen extract of foam. Clean and speedy refining is possible and suitable to drinking water. |
| Inside core product |
Increase in Supporting power, advanced heat-resistance and durability, optimized flow distribution |
Can be used under severe environment. Filter performance is not affected by difference of water pressure. Equal filtration effect |
|
