HWS-2012 Duplex
Household Water Softener

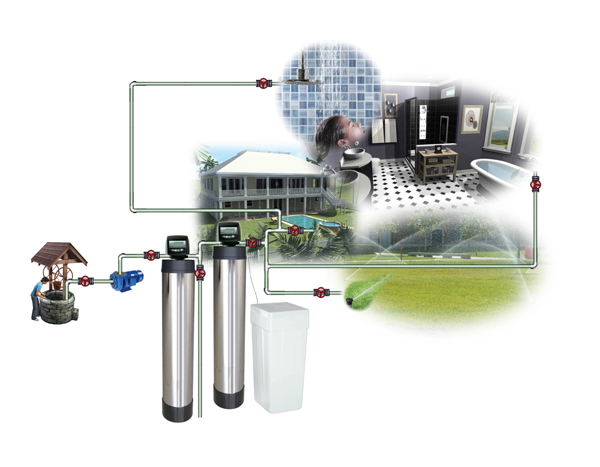

Diagram example of HWS-2012 Duplex
|
| Control Valve : Auto Control Valve |
| Regeneration Cycle |
1-99days by timer |
| Regeneration Start time |
2:00am (Adhustable) |
| Regeneration time |
Default 80min |
| Technical Data |
| Best Service Flow Rate |
3.5㎥/h |
| Inflow Raw Water |
Municipal Water |
| Inflow Pressure |
0.15MPa-0.30MPa |
| Inflow Temperature Range |
1-38degree |
| Electrical Requirement |
AC 220V / 50Hz or 110V / 60Hz |
| Specifications |
| Inlet / Outlet Pipe Size |
1 inch |
| Drain Pipe Size |
1/2 inch |
| Dimensions |
280×1560(mm)+460×460×890(mm) |
| Weight |
42kgs |
|
