HU-800 (FDA Listed)
Undersink UF System
| Operating Temperatures |
Maximum 104°F (40°C) |
Minimum 40°F (4.4°C) |
| Operating pressure |
Maximum 57 psi |
Minimum 10psi |
| pH Range |
Maximum 10.0 |
Minimum 4.0 |
| Production |
760GPD (at 77°F Water Temp , 1.5kgf/㎠ , Inlet 3ℓ/min.) |
| Membrane |
UF Membrane |
| Housing |
Double O-ring housing |
| fitting |
One touch fittings |
| Faucet |
HF-02 |

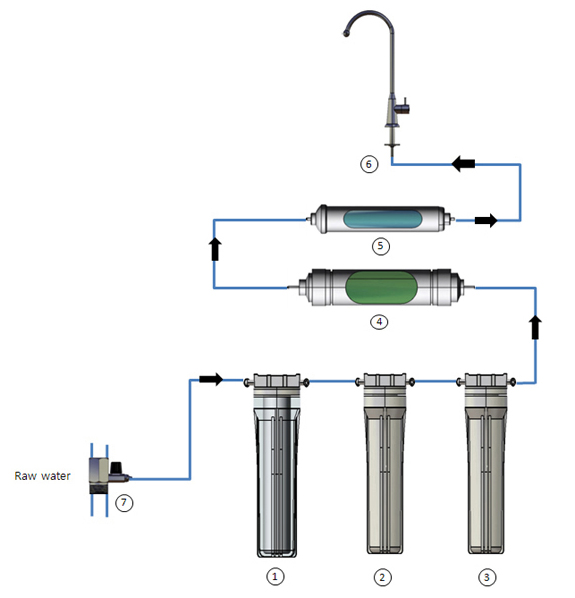

| Filter system |
PP10" - GAC - CTO - UF Membrane - TCR |
| No |
Description |
| 1 |
PP 10" (Clear housing) |
| 2 |
GAC 10" (White housing) |
| 3 |
CTO 10" (White housing) |
| 4 |
UF Membrane |
| 5 |
TCR |
| 6 |
Faucet |
| 7 |
Inlet valve |
|
