WATER LEAK DETECTOR
WACO Corp LEAK DETECTOR
| Product |
|
|
| Model No. |
HW-PR 101
|
HW-PR 102
|

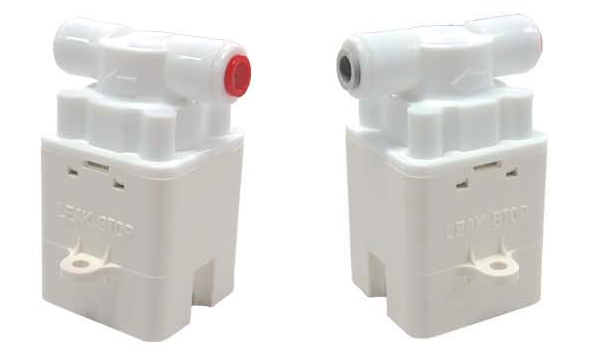

The Leak Detector is a re-usable mechanic leakage protector.
When it detects water leakage, the valve operates and shuts down the feed water. It can be easily re-used by changing the new pulp.
The compact designed leak detector can be equipped in any place in any device.
|
| Working pressure |
0.5~10 bar (7~140 psi) |
| Dimension |
54×40×73(mm) |
| Inlet port |
1/4" Fitting |
| Outlet port |
1/4" Fitting |
| Working Temperature |
1~40℃ (33~104℉) |
PRESSURE REDUCING LEAK DETECTOR(HW-PR 102)
|
The Pressure Reducing Leak Detector is performing both leakage protecting and pressure reducing work in a device.
The minimized fitting type pressure reducing valve is unified into a Leak Detector and reduce inlet water pressure by 40psi(3bar).
The Pressure Reducing Leak Detector is applicable for all potable appliance.
|
| Working pressure |
0.5~10 bar (7~140 psi) |
| Reduced Pressure |
54×40×73(mm) |
| Tolerance |
±35% |
| Port type |
1/4" fitting - 1/4" fitting |
| Rated flow |
Minimum 3.5ml/min |
| Working Temperature |
1~40℃ (33~104℉) |
| Dimension |
70.5×60.0×72.3(mm) |
|
