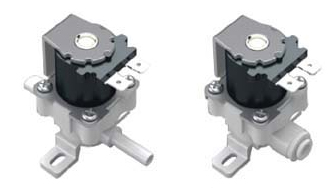

Solenoid Valve
WACO Corp Solenoid Valve
| Items |
Standard Specifications |
| Usage Liquid |
Purified water |
Operating pressure
Pressure resist (Water pressure)
|
0.2~10kgf/㎠ [0.02~0.98Mpa]
19.5kgf/㎠ [1.95Mpa]
|
| Rated voltage |
DC12V, DC24V, AC110 50/60Hz, AC220V 50/60Hz |
| Rated voltage range |
-15%~±10% |
| Duty time |
Continous |
| Working Temperature |
1~40℃ |
| Wire Insulation type |
E 2UEW(120℃ Urethane Enamel Wire) |
| Ambient temperature |
Less then 40℃ |
| Valve construction |
Poilot-type poppet |
| Temperature rise at coil |
Less than Maximum 80deg when applied rated voltage |
| Operating pressure |
Rated voltage |
Bracked Hole |
Inlet |
outlet |
| 0.2~10kgf/㎠ |
DC12V, DC24V |
35.5~45.5mm |
1/4" |
1/4" |
| 0.2~10kgf/㎠ |
AC220V 50/60Hz |
35.5~45.5mm |
1/4" |
1/4" |
|
