UV Filter



          Catch the pure!!!

                            New Generation of Filter

                                                Simple, Easy and Cost Saving

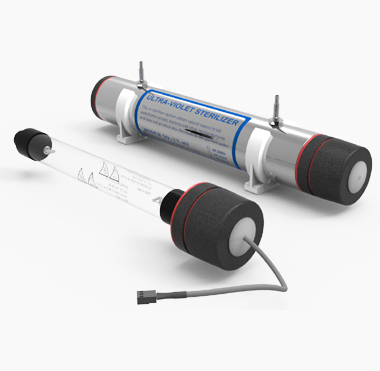

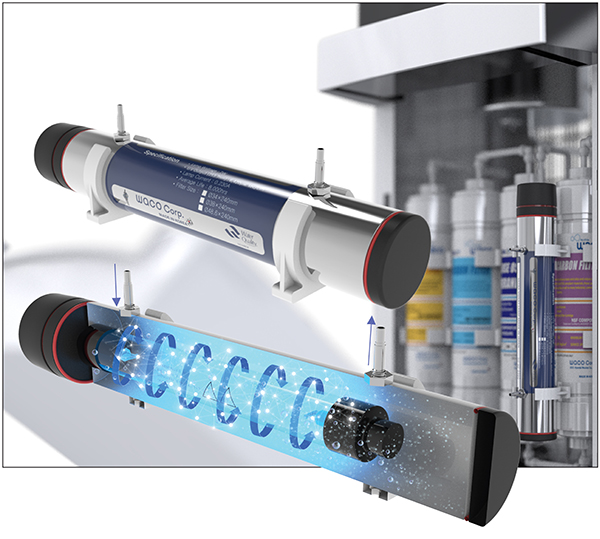

                           * Just see the picture how we improve UV filters.
                           * Simple design.
                           * Easy to handle with one-touch quick tube fittings.

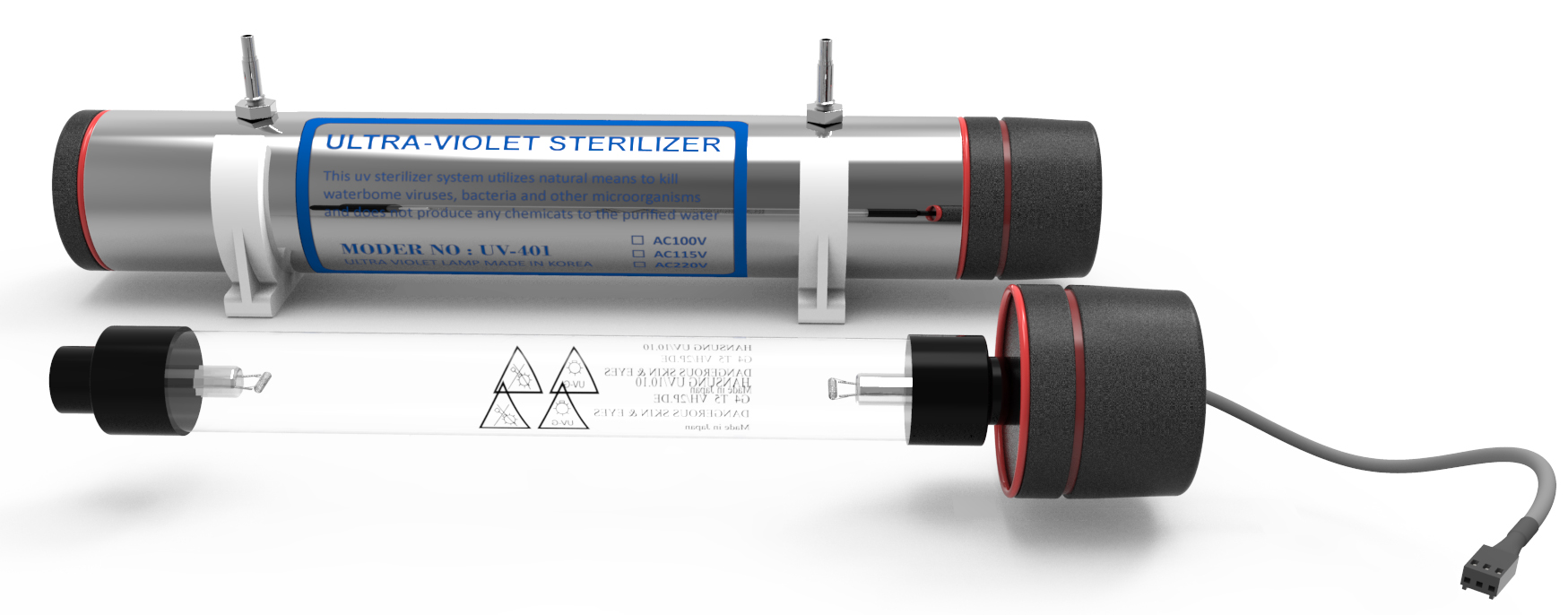

                           * Easy to replace only UV lamp.
Features :

Premium shape design
1/4” Quick connect fittings
Pressure aging test on 100,000 times
No glue used in assembly

Transformers:

6W 110/60, 120/60, 220/50 230/50 250/50
4W 110/60, 120/60, 220/50 230/60 250/50

Benefits :

Kill bacteria, E-coli
All Fitted for existing filters
Safe design over water pressure
Best in household purifier or home application
Assembled by Food grade material

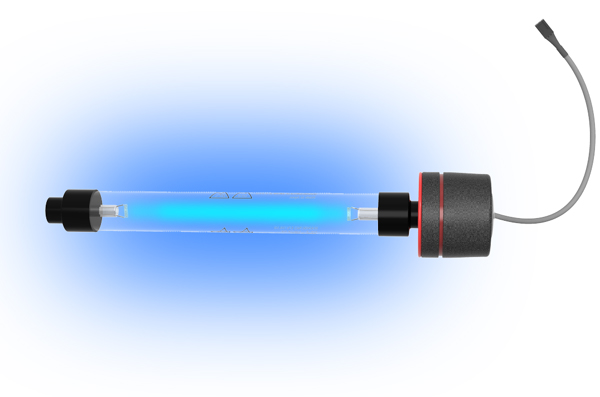

Easy UV replacement lamp



Specification


UV Filter, 4Watts(Model No. UV-401)

SPECIFICATION

NO

NAME

MATERIAL

Q'T

REMARKS

Electrical Suppy

AC220V

1

Outer Tube

Q'uartz

1

￠20.6×174mm

Electrical Frequncy

50/60HZ

2

Inner Tube

UV Grass

1

￠15×134.5mm

Lamp Wattage

4.6W

3

Teflon Wire

UL1333/AWG22

4

2Pin×300mm

Lamp Current

0.162A

4

Tube Holder

SUS304

1

￠38×170mm

Lamp Voltage

30V

5

Holder Cover

PC-Black

2

￠38×31mm

UV Output

0.8W

6

Rubber

Sillicon

2

￠33×8.5mm

UV Micro Watts (at1㎝)

6,370㎼/㎠

7

SUS Cover

SUS316

2

￠32×0.5mm

Spectral peak

253.7㎚

8

1/4"Fitting

SUS304

2

One touch

Averlage Life

8,000hrs

9

Housing

MG610224

1

K.E.T

PART NO

G4T5

AC220V

10

Terminal

ST730461-3

2

K.E.T

G4T5

AC115V

11

SIZE

D × L

1

￠38×212mm

Box Size (W × D × H)

310×470×255

12

Weight

560g(EA)

40ea

24Kg


UV Filter, 6Watts(Model No. UV-701)

SPECIFICATION

NO

NAME

MATERIAL

Q'T

REMARKS

Electrical Suppy

AC220V

1

Outer Tube

Q'uartz

1

￠20.6×205mm

Electrical Frequncy

50/60HZ

2

Inner Tube

UV Grass

1

￠15×165mm

Lamp Wattage

6.3W

3

Teflon Wire

UL1333/AWG22

4

2Pin×300mm

Lamp Current

0.230A

4

Tube Holder

SUS304

1

￠38×200mm

Lamp Voltage

30V

5

Holder Cover

PC-Black

2

￠38×31mm

UV Output

1.8W

6

Rubber

Sillicon

2

￠33×8.5mm

UV Micro Watts (at1㎝)

6,450㎼/㎠

7

SUS Cover

SUS316

2

￠32×0.5mm

Spectral peak

253.7㎚

8

1/4"Fitting

SUS304

2

One touch

Averlage Life

8,000hrs

9

Housing

MG610224

1

K.E.T

PART NO

G4T5

AC220V

10

Terminal

ST730461-3

2

K.E.T

G4T5

AC115V

11

SIZE

D × L

1

￠38×242mm

Box Size (W × D × H)

310×470×320

12

Weight

610g(EA)

40ea

24Kg
