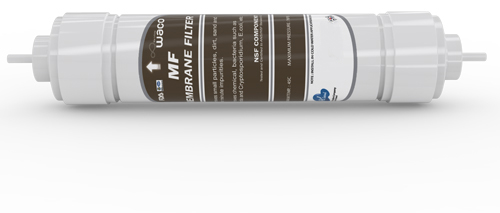

MF Membrane Filter
|
Feature - Apply Cylinder type nano fibrous membrane - Precise filtering performance - High flow rate and high rejection rate for particles - selective filtering against subject Application - Removes small particles, dirt, sand and other minute impurities. - Removes chemical, bacteria such as Giardia and Cryptosporidium, E.coli, etc. - MAXIMUM TEMP : 80℃ - MAXIMUM PRESSURE : 70PSI |
|
|
Item |
Material |
Dimension(mm) |
Working condition |
Adhesion |
Rejection grade |
|||
| Filter media |
Core/Cage/ |
I.D/O.D |
Length |
Max. temperature |
Max. differential pressure |
|||
| Contents |
Polypropylene Polyamide |
Polypropylene Polyetylene |
30/64 |
250(10") 500(20") 750(30") |
80℃ |
4.8bar@25℃ 2.1bar@80℃ |
Heat-welding |
0.1 0.2 0.5 1 |
|
