HWF-2011

Household Water Softener

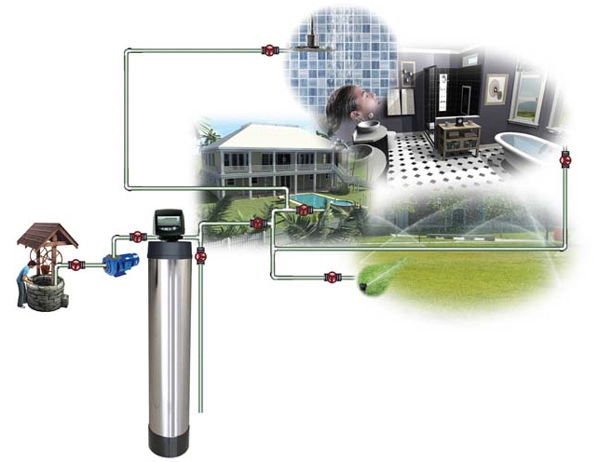

Diagram example of HWF-2011

(More)Image View Enlarged..


HWF-2011

Control Valve : Auto Control Valve
Regeneration Cycle 1-99days by timer
Jackets Stainless steel
FRP Vessel 1054
AC Volume 16kgs
KDF Volume 1.72kgs

Technical Data
Best Service Flow Rate 1.5㎥/h
Inflow Raw Water Municipal Water
Best Inflow Pressure 0.15MPa-0.30MPa
Inflow Temperature Range 1-39degree
Electrical Requirement 220V / 50Hz or 110V / 60Hz

Specifications
Inlet / Outlet Pipe Size 1 inch male BSPT
Drain Pipe Size 3/4 inch
Dimensions (Dia × H) 280×1570mm
Packing Size 450×330×1630mm
Weight 36kgs

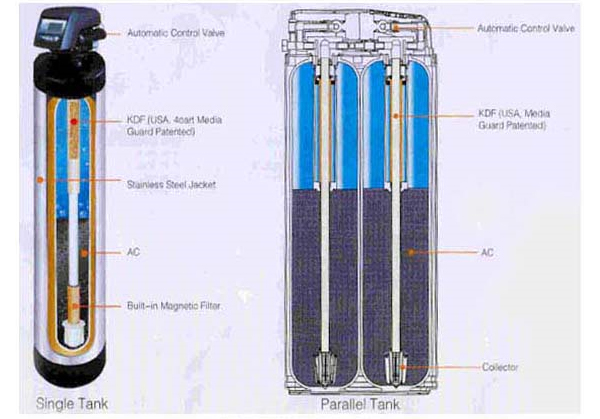

Whole House Water Fillter uses a patented media KDF55(U.S.Patent 4,642,192 and listed under NSF61(Health Effects) for water treatment plant applications), and high grade coconut shell Granulated Activated Carbon as the filtration media that have been tested to dramatically reduce or effectively remove CHLORINE, HEAVY METALS(lead, mercury, copper, nickel, arsenic, chromium and other dissolved metals), ORGANIC & CHEMICAL CONTAMINANTS(trihalomethanes (THM), pesticides, industial solvents(halogenated hydrocarbons), poly chlorinated biphenyls(PCBs), and poly cyclic aromatic hydrocarbons(PAHS)), BACTERIA, BAD TASTE, ODRS, RUST, SEDIMENT and SCALES in the water to meet your health expectation. The Build-in Magnetic Filter in the system, if so equipped breaks up big water molecular structure and redirects the polarity of water molecules to let water be well absorbed that may improve blood circulation to lower blood pressure, reduce body fat and preserve health conditions.

* Kind to skin complexion and super hair conditioning after removing chlorine in your bath and shower.
* Easier housekeeping, gleaming fixtures.
* Safeguard your family's health and safety in an unexpected contamination breakout.
* Improving living standard with healthier water for you and the ones you care.
