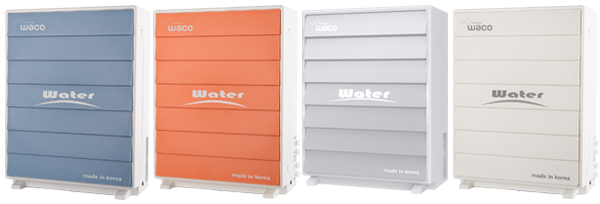

HW-RP(OP)300 Series (FDA Listed)
Tankless RO System
|
• HW-RP(OP)300 M : Sediment Filter + Pre Carbon Filter + RO Membrane Filter + Post Carbon Filter + RO Pump |
|
1. Features of HW-RP 300 Series |
|
♦ Tankless Reverse Osmosis System ♦ Undersink type & Onsink type(Counter top) ♦ Use of RO 300 GPD Filter * Average Flow Rate(GPD): 300 GPD * Improving the TDS(Total Dissolved Solids) rejection(Rejection Rate: 97%) * Meet all different water quality needs. ♦ With booster pump(Motor) * Using the high quality booster pump that can provide 100-120psi water pressure to pass through the membrane even with areas under low water pressure. ♦ Basic permeate rate * Inlet water oressure : 3kgf/cm²- Flow rate : 120LPH / Capacity of treated water : 300 GPD ♦ Specification - Dimension : 325x180x430mm(WxDxH) - Weight : 10.5kgs |
2. Specification of parts |
|
♦ RO 300GPD * Operation pressure(psi): 65psi * Average Flow Rate(GPD): 300 GPD * Rejection Rate(%): 97% * Recover Rate(%): 10% ♦ HIGH quality PUMP - VOLTS : DC24V - INLET PRESSURE : 15~90psi - OPEN FLOW : 2.1LPM - AMPS : 2.1A - WORKING PRESSURE : 82±8psi - SUCTION HEIGHT : 2M - PRESSURE SETTING : BYPASS 125psi |

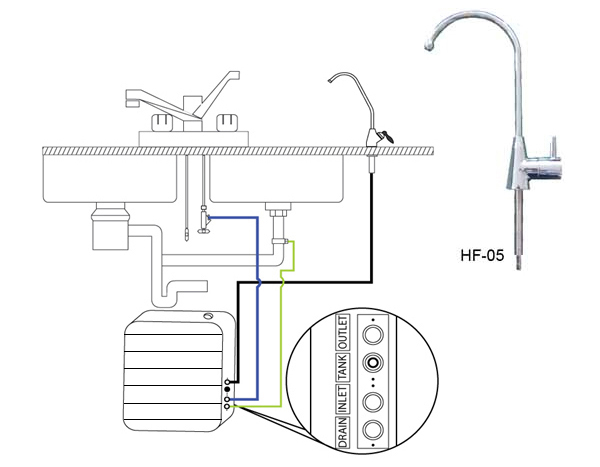

3. Installation Diagram |
|
|

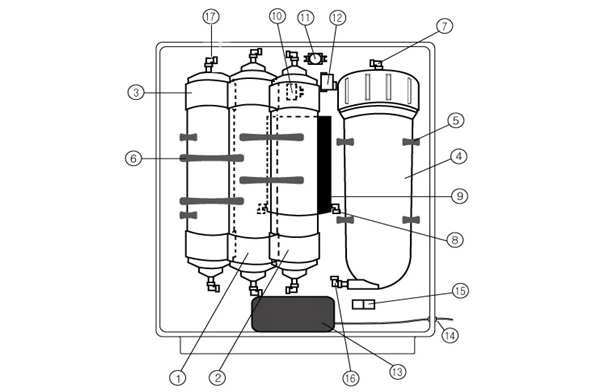

Parts Name |
| 1. Sediment Filter | 10 Low Pressure S/W |
| 2. Pre Carbon Filter | 11. Solenoid Valve |
| 3. Post Carbon Filter | 12. High Pressure S/W |
| 4. RO 300G Membrane Filter | 13. AC/DC Adapter |
| 5. M-Clip | 14. Cord Bushing |
| 6. M-M Clip | 15. Flow Restrictor |
| 7. Elbow 1/4" | 16. Check Elbow 1/8" |
| 8. Elbow Fitting 3/8" | 17. L-Fitting |

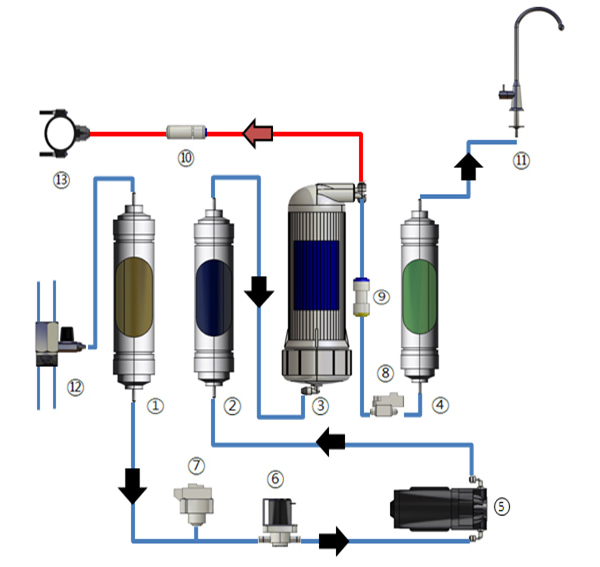

Water Flow Process |
|
| NO | Description |
| 1 | Sediment Filter 11" |
| 2 | Pre Carbon Filter 11" |
| 3 | 300GPD RO Membrane |
| 4 | Post Carbon Filter 11" |
| 5 | Pump |
| 6 | Solenoid Valve |
| 7 | Low Pressure Switch |
| 8 | High Pressure Switch |
| 9 | Check Valve |
| 10 | Flow Restrictor |
| 11 | Faucet |
| 12 | Drain Connector |
| 13 | Inlet Valve |
