HW-NP(OP)200 Series (FDA Listed)
Optional Filter System (UF membrane / Alkali / Nano pH)
|
• HW-NP(OP)200 A : Sediment Filter + Pre Carbon Filter + UF Membrane Filter + Alkali Filter + Post Carbon Filter • HW-NP(OP)200 N : Sediment Filter + Pre Carbon Filter + Nano pH Filter + Post Carbon Filter • HW-NP(OP)200 U : Sediment Filter + Pre Carbon Filter + UF Membrane Filter + Post Carbon Filter |
|
(More)Image View Enlarged..
|
(More)Image View Enlarged..
|
1. Features of HW-NP(OP) 200 Series |
|
♦ Undersink type & Onsink type(Counter top) ♦ Saving space ♦ Optional Filter System(UF membrane / Alkali / Nano pH) * UF membrane Filter – Removal for harmful chemicals, bacteria, virus, Etc. But, containing the minerals beneficial for health * Alkali Filter – Removal Active Oxygen(pH5.8~pH8.2) * Nano Ph Filter – Strong of oxidation, reduction potential reducing rate Removal Active Oxygen(Ph8~Ph10) ♦ Specification - Dimension : 325x180x430mm(WxDxH) - Weight : 7.5kgs |

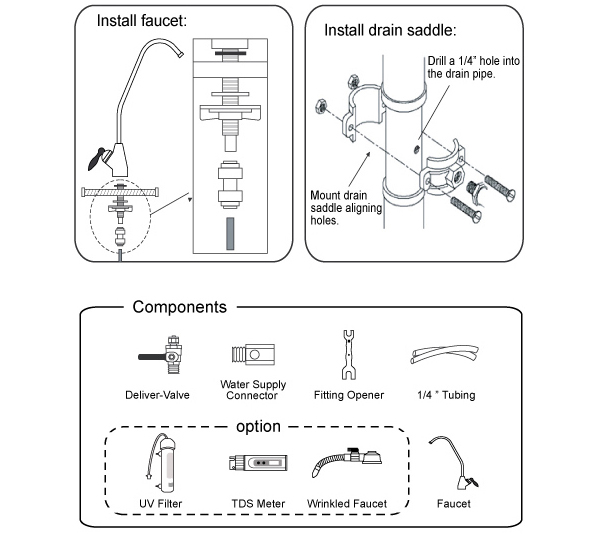

2. Installation Diagram |
|
|

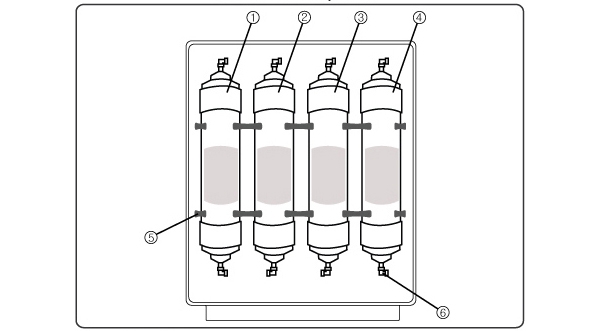

Each part of main body (UF Filtration System) |
|
Parts Name |
| 1. Sediment Filter | 4. Post Carbon Filter |
| 2. Pre Carbon Filter | 5. L-Fitting |
| 3. UF membrane Filter | 6. Filter Clip |

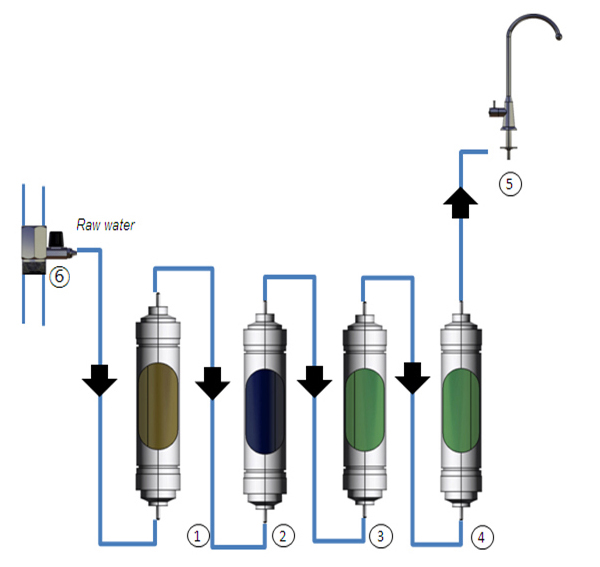

Water Flow Process |
|
| NO | Description |
| 1 | Sediment Filter 11" |
| 2 | Pre Carbon Filter 11" |
| 3 | UF Membrane 11" |
| 4 | Post Carbon Filter 11" |
| 5 | Faucet |
| 6 | Inlet Valve |
