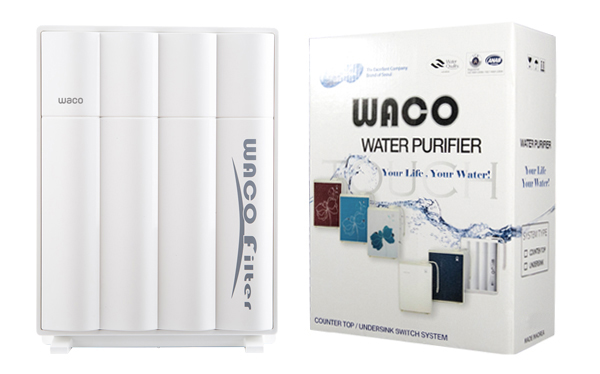

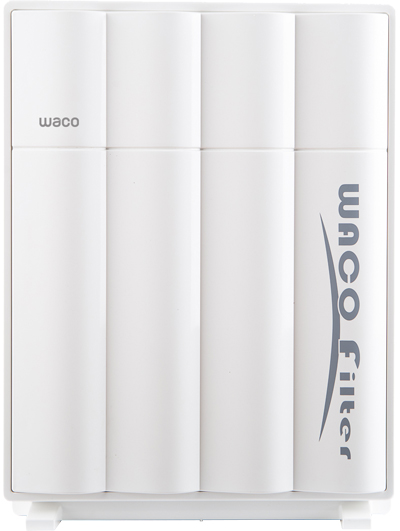

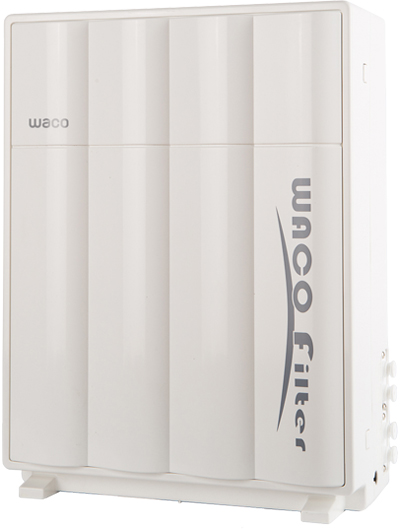

HW-NP100 Series (FDA Listed)
RO Filtration System
• HW-NP100 :
Sediment Filter + Pre Carbon Filter + RO Membrane Filter + Post Carbon Filter
• HW-NP100M :
Sediment Filter + Pre Carbon Filter + RO Membrane Filter + Post Carbon Filter + RO Pump
|
1. Features of HW-NP 100 Series
|

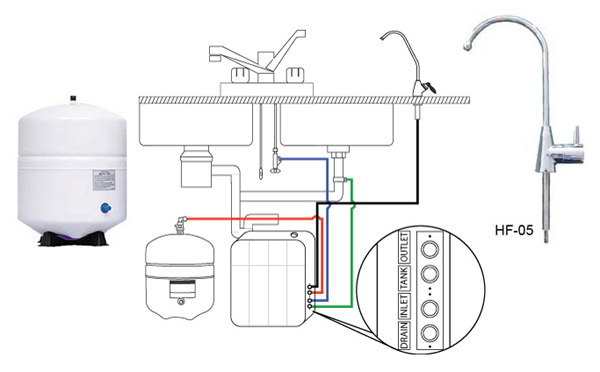

♦ Undersink type
♦ Use of RO membrane Filter
- Average Flow Rate(GPD): 50,75,100,150 GPD
- Improving the TDS(Total Dissolved Solids) rejection
- Meets all different water quality needs.
♦ With booster pump (HW-NP 100M)
- Using the high quality booster pump that can provide 100-120psi water pressure to pass through the membrane even with areas under low water pressure.
♦ Specification
- Dimension : 325x180x430mm(WxDxH)
- Weight : 7.5kgs (HW-NP 100), 9.5kgs (HW-NP 100M)
|
2. Recommended Operating Regulation of RO
|
1) Need enough flushing after installation and changing filters.
2) Rate of removal and the volume of treated water depends on water temperature, water pressure, condition of raw water and etc.
3) Product Specifications for RO Membrane.
|
| MODEL |
Water Pressure(kgf/cm) |
Water temperature(°c) |
Capacity of treated water(ml/min) |
GPD |
Removal(%) |
| 50GPD |
4.2 |
25 |
178 |
67.9 |
91.3 |
| 75GPD |
4.2 |
25 |
235 |
89.7 |
93.9 |
| 100GPD |
4.0 |
25 |
272 |
103.8 |
94.9 |
| 150GPD |
5.6 |
25 |
401 |
152.8 |
94.5 |
Permeate flow and slat rejection are based on the following test conditions.
: 250ppm(NaCI) softened tap water, 77°F(25°c), 15% recovery and the specified applied pressure
|

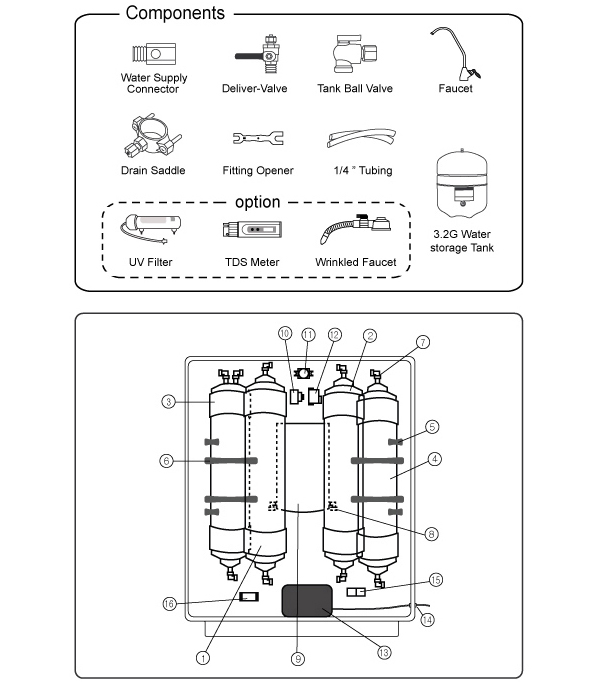

| 1. Sediment Filter |
9. RO Pump |
| 2. Pre Carbon Filter |
10. Low Pressure S/W |
| 3. RO membrane Filter |
11. Solenoid Valve |
| 4. Post Carbon Filter |
12. High Pressure S/W |
| 5. M-Clip |
13. AC/DC adapter |
| 6. M-M Clip |
14. Cord Bushing |
| 7. L-Fitting |
15. Flow restrictor |
| 8. Elbow Fitting |
16. Check Valve |

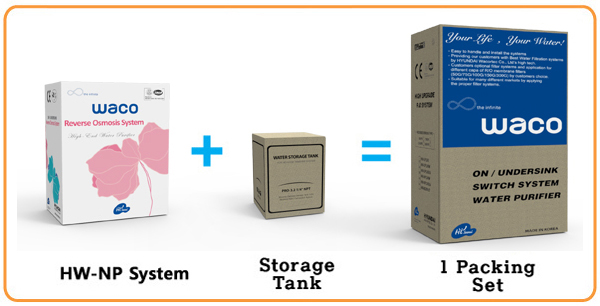

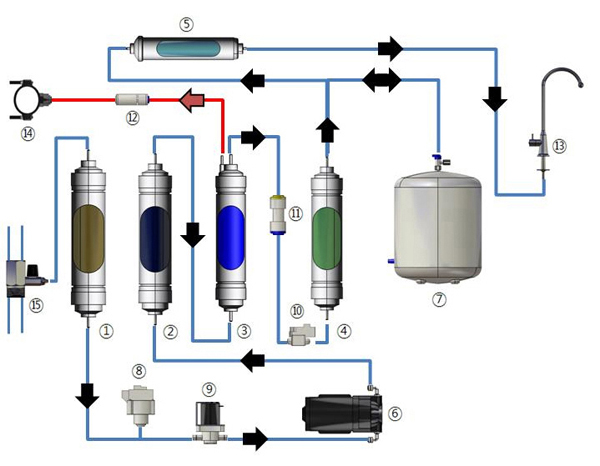

4. HW-NP RO Package System
|
| NO |
Description |
| 1 |
Sediment Filter |
| 2 |
Pre Carbon Filter |
| 3 |
RO Membrane |
| 4 |
Post Carbon Filter |
| 5 |
TCR Filter |
| 6 |
Pump |
| 7 |
Pressure Tank |
| 8 |
Low Pressure Switch |
| 9 |
Solenoid Valve |
| 10 |
High Pressure Switch |
| 11 |
Check Valve |
| 12 |
Flow Restrictor |
| 13 |
Faucet |
| 14 |
Drain Valve |
| 15 |
Feed Valve |
|
