HR-800UV (FDA Listed)

Undersink Reverse Osmosis System


(More)Image View Enlarged..


Operational Parameters

Operating Temperatures Maximum 100°F (38°C) Minimum 40°F (4.4°C)
Operating pressure Maximum 100 psi Minimum 30psi
pH Range Maximum 10.0 Minimum 4.0


Specifications

Production 50GPD / 75GPD (at 77°F Water Temp.)
Membrane rejection 96% (typical)
Tank capacity 3 gallons
Pump DC 24V (water booster pump)
Housing Double O-ring housing
fitting One touch fittings
Solenoid Valve DC 24V 250mA
Transformer Input 100~240V, 50~60Hz / Output DC 24V 1.2A
UV Lamp 4W (30,000 Micro-watts)
BALLAST AC 32V 4W
Faucet HF-02
Filter system PP10" - GAC - CTO - RO Membrane - TCR - UV FILTER

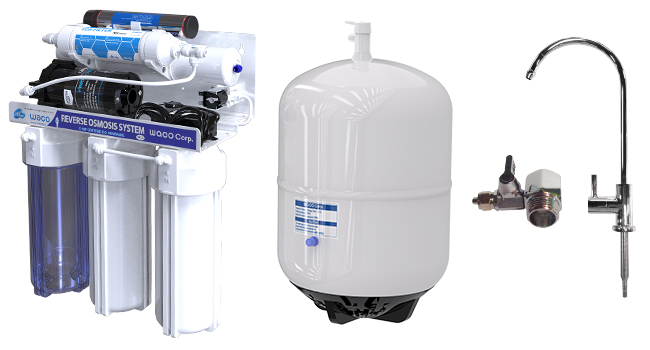

HR-800UV Package System

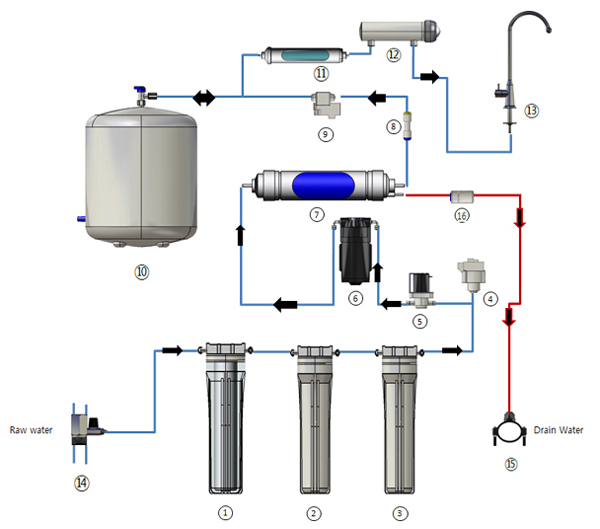

Water Flow Process

No Description
1 PP 10" (Clear housing)
2 GAC 10" (White housing)
3 CTO 10" (White housing)
4 Low pressure switch
5 Solenoid valve
6 Pump
7 RO Membrane
8 Check Valve
9 High pressure switch
10 Tank
11 TCR
12 UV Filter
13 Faucet
14 Inlet valve
15 Drain connector
16 Flow Restrictor
