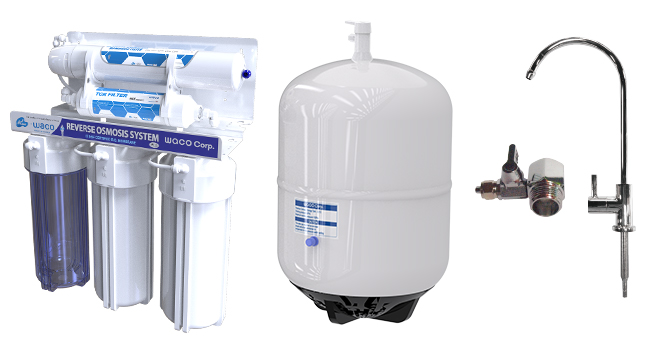

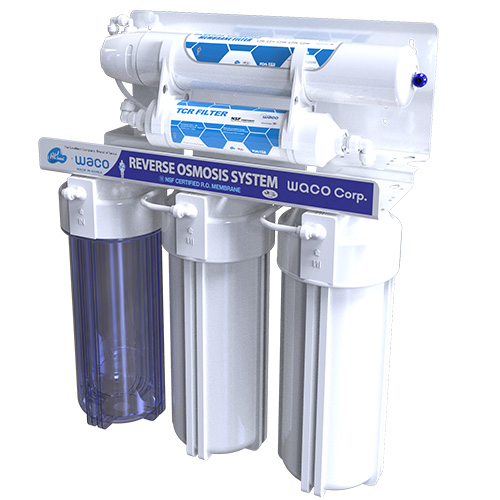

HR-800 (FDA Listed)
Undersink Reverse Osmosis System
| Operating Temperatures |
Maximum 113°F (45°C) |
Minimum 40°F (4.4°C) |
| Operating pressure |
Maximum 100 psi |
Minimum 30psi |
| pH Range |
Maximum 10.0 |
Minimum 4.0 |
| Production |
75GPD (at 77°F Water Temp.) |
| Membrane rejection |
96% (typical) |
| Tank capacity |
3 gallons |
| Pump |
DC 24V (water booster pump) |
| Housing |
Double O-ring housing |
| fitting |
One touch fittings |
| Solenoid Valve |
DC 24V 250mA |
| Transformer |
Input 100~240V, 50~60Hz / Output DC 24V 1.2A |
| Faucet |
HF-02 |
| Filter system |
PP10" - GAC - CTO - RO Membrane - TCR |

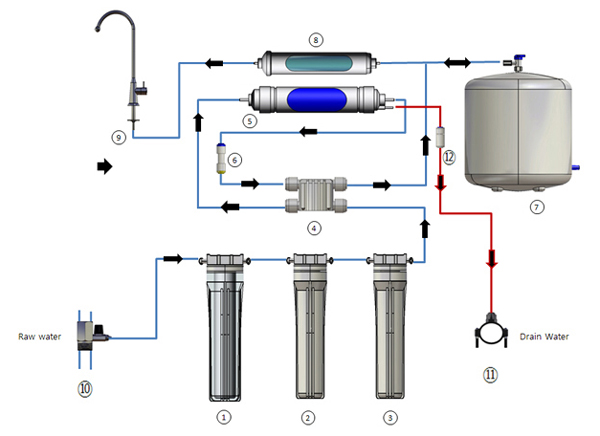

| No |
Description |
| 1 |
PP 10" (Clear housing) |
| 2 |
GAC 10" (White housing) |
| 3 |
CTO 10" (White housing) |
| 4 |
Auto Shut-off valve |
| 5 |
RO Membrane |
| 6 |
Check Valve |
| 7 |
Tank |
| 8 |
TCR |
| 9 |
Faucet |
| 10 |
Inlet valve |
| 11 |
Drain connector |
| 12 |
Flow Restrictor |
|
