Quick Change
Ultimate Inline Water Filter (FDA Listed)

Model no. HQ7

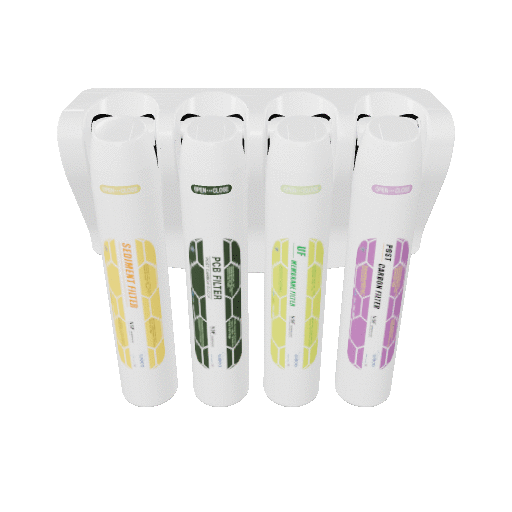

3D AR Contents of HQ7(Viewer)

Checking with AR Contents

You can check a 3D AR Contents at installation sites.

Click the links through QR Code in your smart phone camera apps.

AR Contents could be activated with below smart phone specifications.

iPhone: Above iOS 12
Android: Above 8.0 plus(AR Core 1.9)

* QUICK AND SOFT FILTER CHANGE

- Model :HQ7 Series RO System / UF System
- Application : DIRT / RUST, TASTE / ODOR, CHLORINE, VIRUS, BACTERIA, E-COLI

• Patented Product
• No tools, No Water Spillage
• Easy Filter Replacement

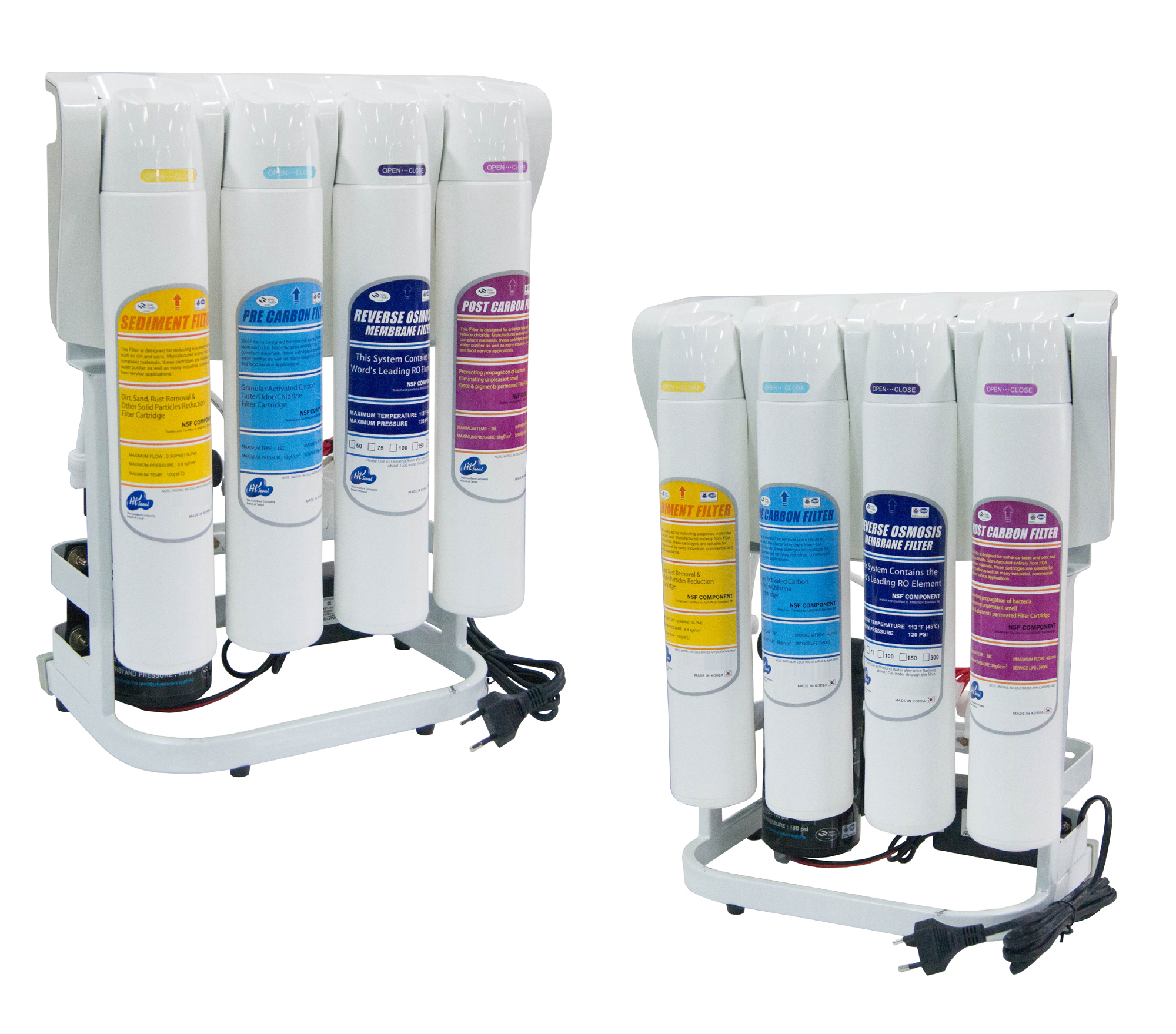

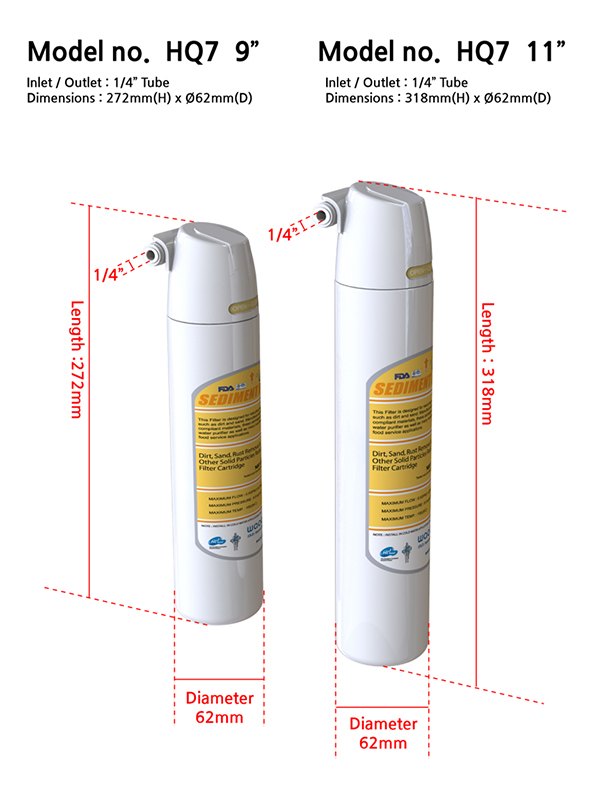

(HQ7 11 inch)Image View Enlarged..

(HQ7 9 inch)Image View Enlarged..

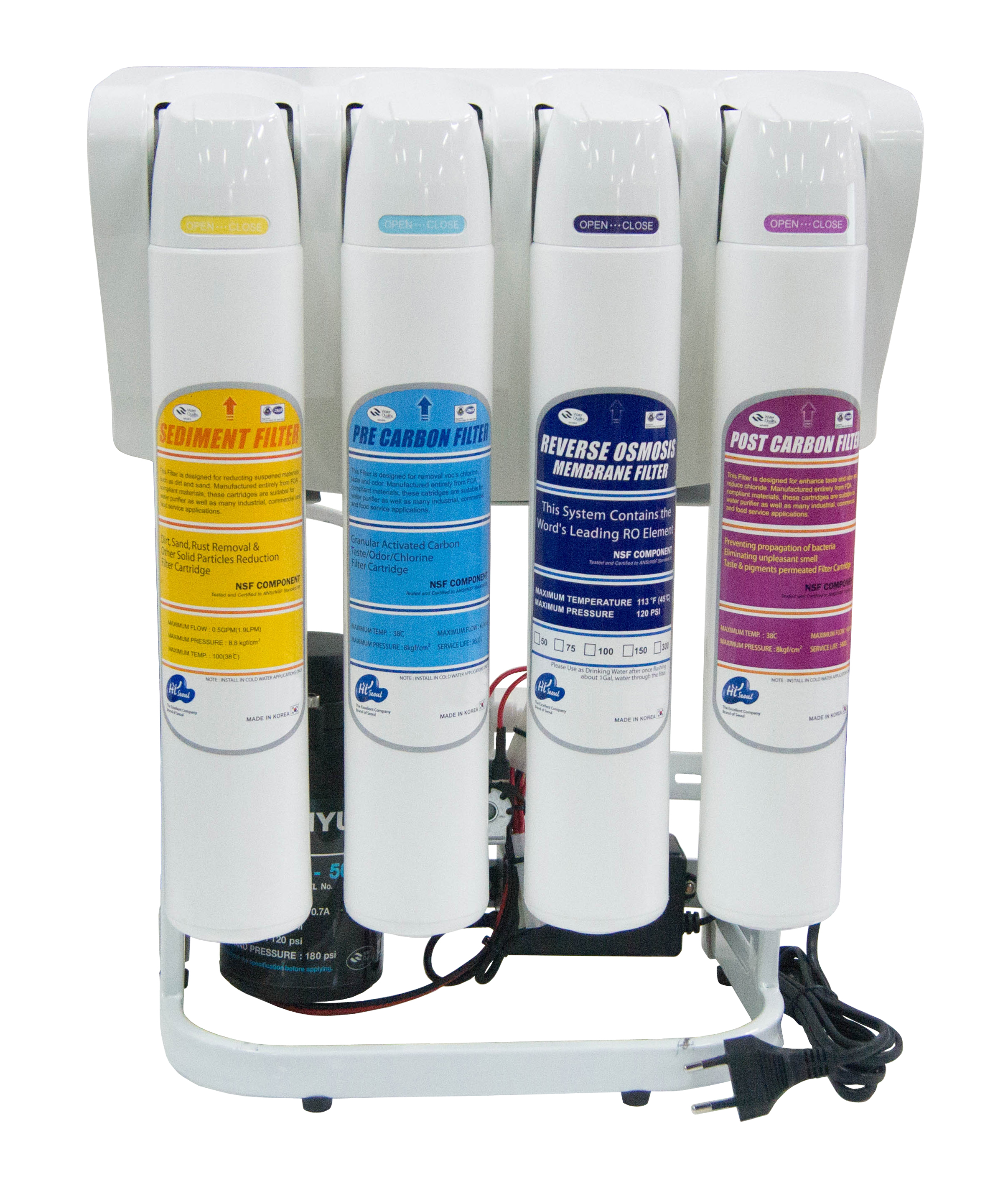

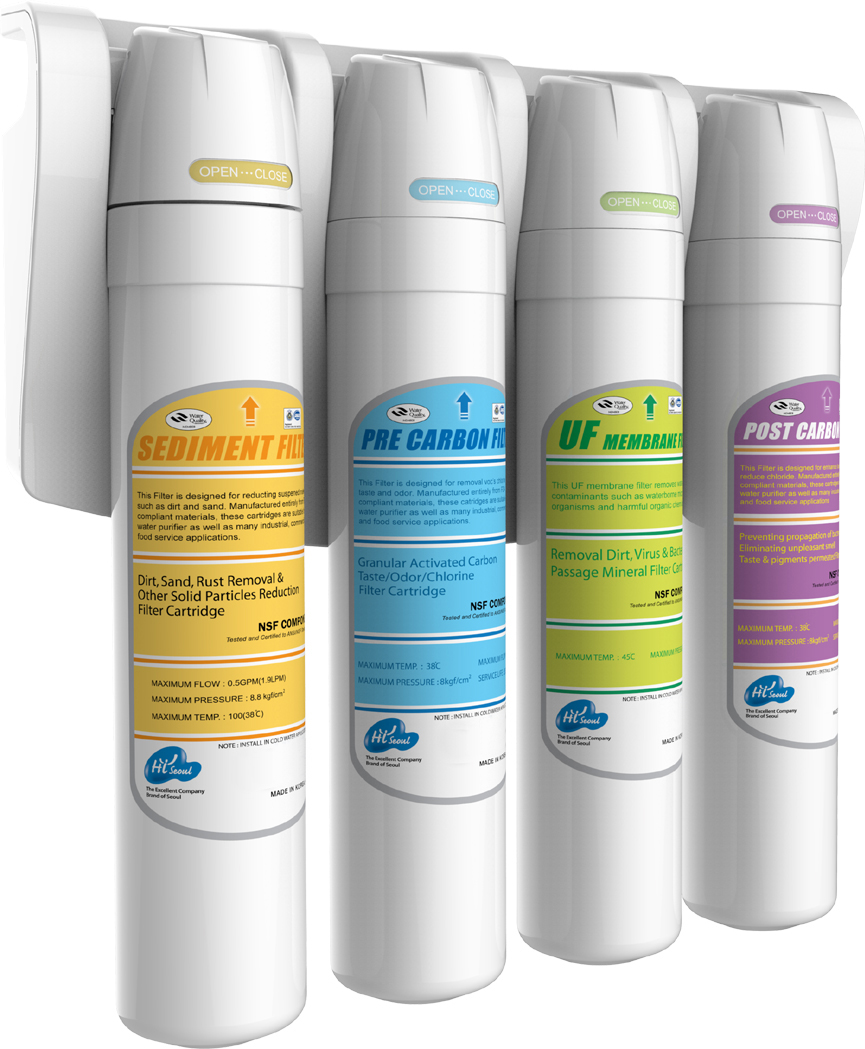

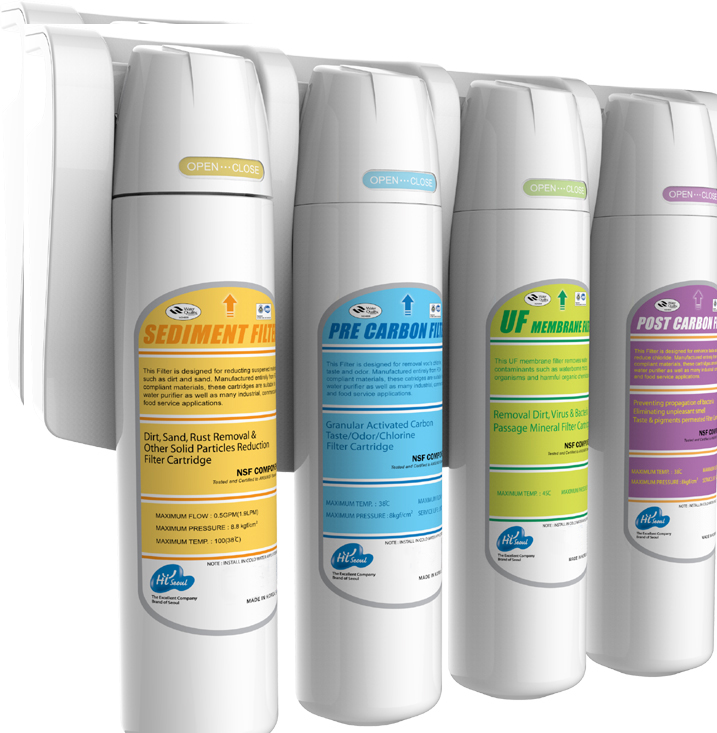

4 STAGE

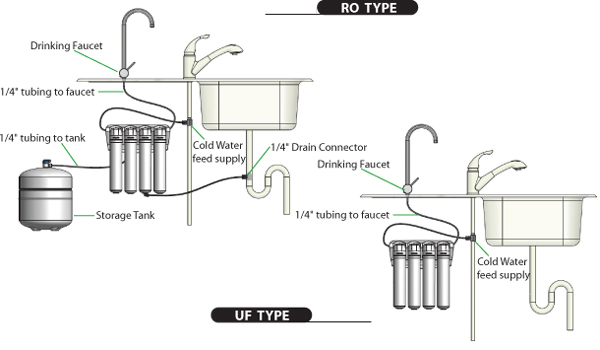

* RO TYPE : Sediment Filter + Pre Carbon Filter + RO membrane Filter + Post Carbon Filter

* UF TYPE : Sediment Filter + Pre Carbon Filter + UF membrane Filter + Post Carbon Filter

Image View(Virtual Reality Product / Drag mouse on image)

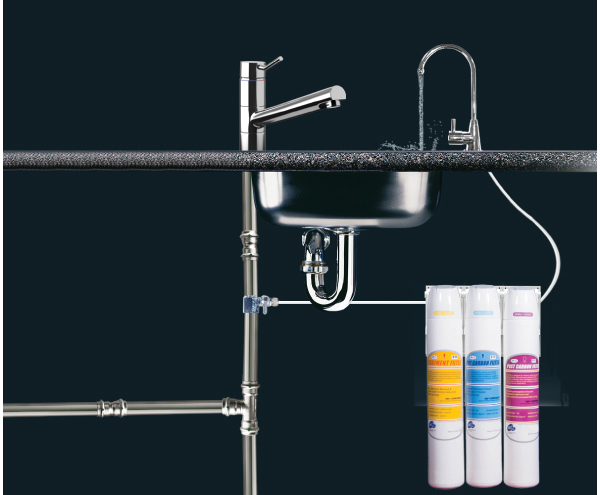

3 STAGE(HQ7 3FU)

* RO TYPE : Sediment Filter + RO membrane Filter + Post Carbon Filter

* UF TYPE : Sediment Filter + UF membrane Filter + Post Carbon Filter

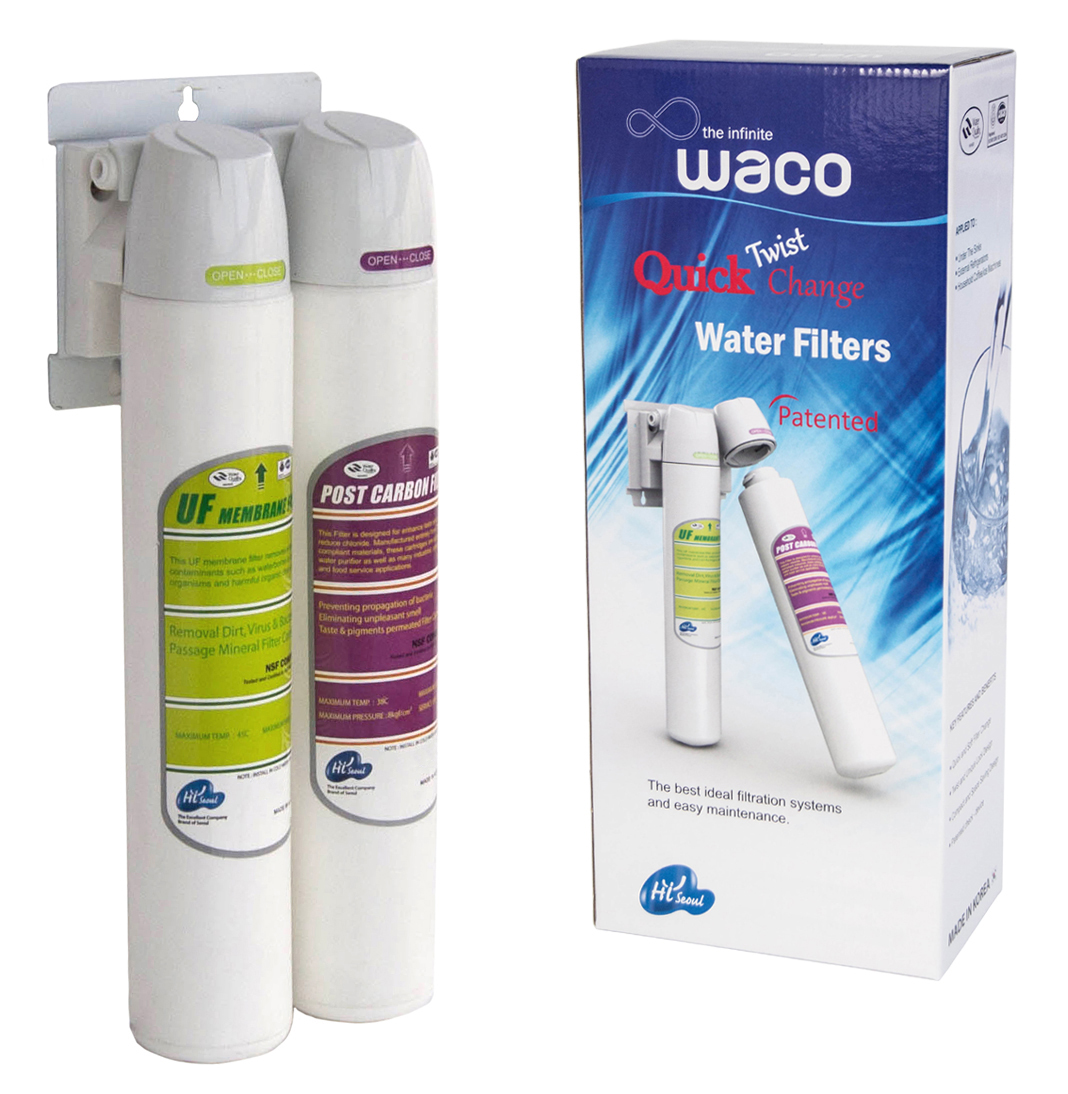

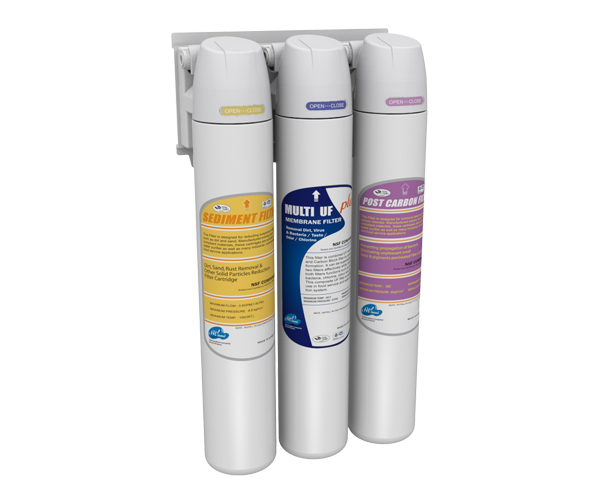

3 STAGE(HQ7 3FMU)

* Improving filtering performance by the Multi-Plus Composite filter!

Image View(Virtual Reality Product / Drag mouse on image)

2 STAGE

* Available to combine filter system on customer demand.

1 STAGE

* Available to combine filter system on customer demand.

1. Features of HQ7 Series RO System / UF System

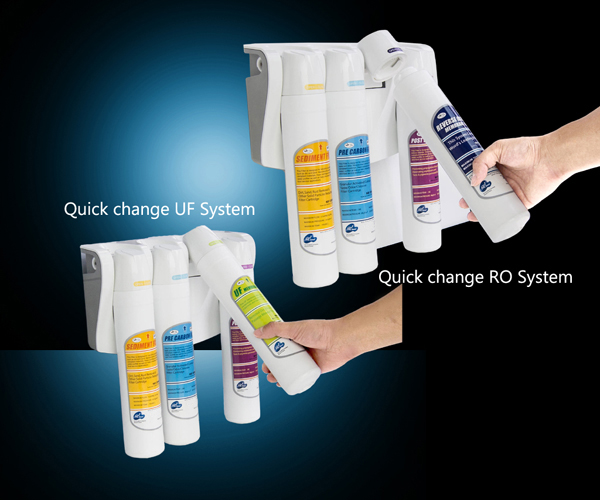

1) Quick and soft filter change - Twist and unique lock design	2) Ball valve is builtin filter head - Minimized water drop when replace filters
3) No need electrical power - HQ7 is designed without pressure pump	4) Attractive Design - Space saving Design

Image View
(Virtual Reality Product / Drag Mouse to check convenient HQ 7 filter replacement method.)

2. Specification of HQ7 Series

Model No.	Working Pressure	Maximum Temperature	Hydrostatic burst pressure	Impulse Test	Hydrostatic pressure	Inlet/Outlet Size
HQ7-RO	40~125psi	100℉ 38℃	Min. 600psi	0~150 psi for 100,000 cycles	360 psi (2,482kPa) for 15 minutes	1/4' TUBING
HQ7-UF	30~60psi	100℉ 38℃	Min. 600psi	0~150 psi for 100,000 cycles	360 psi (2,482kPa) for 15 minutes	1/4' TUBING

3. Filters Specification of HQ7 Series

[STAGE 1] SEDIMENT Filter

Operation Conditions
- Flow rate : 0.5GPM(1.9LPM)
- Pressure : 30 ~ 125PSI(2~8.8kgf/㎠)
- Temperature : 34℉ ~ 100℉(1~38℃)
- Function : mechanical reduction
- Flushing : 5 minutes
- Service life : 6 Month

[STAGE 2&4] Pre carbon Filter(4 stage) & Post Carbon Filter

Operation Conditions
- Flow rate : 0.5GPM(1.9LPM)
- Pressure : 30~125 PSI(2~8.8kgf/㎠)
- Temperature : 34℉ ~ 100℉(1~38℃)
- Function : chemical reduction
- Flushing : 5 minutes
- Service life : 6 Month

[STAGE 3]
TYPE : RO Membrane Filter

Operation Conditions
- Flow rate : 50GPD or 75GPD
- Pressure : 40 ~ 125 PSI(2.8~8.78kgf/㎠)
- Temperature : 34℉ ~ 100℉(1 ~ 38℃)
- Function : RO membranes
- Flushing : 30 minutes
- Check valve is built in RO membrane filter and flow restrictor is added

TYPE : UF Membrane Filter

- Reduction : Bacteria, More than 99.9% for Escherichia coli & staphylococcus aureus.
(Certified by Korea Environment & Water Works Institute)
- Capacity : 2,500 Gallon (9,400 Liter)
- Micron Rating : 0.05~0.01 micron
- UF Membrane media is made in Korea - Service life : 1 Year
