- CAUTION
1. CARBON FILTER FLUSHING
|
After the installation or changing carbon filter. Manual Flushing Valve shall be opened for 2~3 min before operation.(process: water flow for 2~3 min)
|
2. AUTO FLUSHING (RO MEMBRANE)
|
- INSTALLATION STEP
|
1. Tubing connections on the back of products should be connected with each usage. (Inlet Water, Drink Water, Tank, Drain) But, If the tank is not a pressure tank, water, level switch must be set the tank separatly.
2. Carbon filter need to be flushing with manual flushing valve for 2~3 min the initial installation.
3. Set the local time of timer for BYPASS and BYPASS TIME you want.
4. Turn on the system.
5. Once pressure tank is filled up water and the system is automatically stopped. Faucet shall be opened and the stored water shall be out of the tank.
|
- RO MEMBRANE
|
Membrane Type: Polyamide Thin-film Composite
Maximum Operating Temperature: 113'F (45'C)
Maximum Operating Pressure: 125psi (8.6bar)
Permeation flow rate(GPD) of RO membrane depends on the quality of raw water.
|

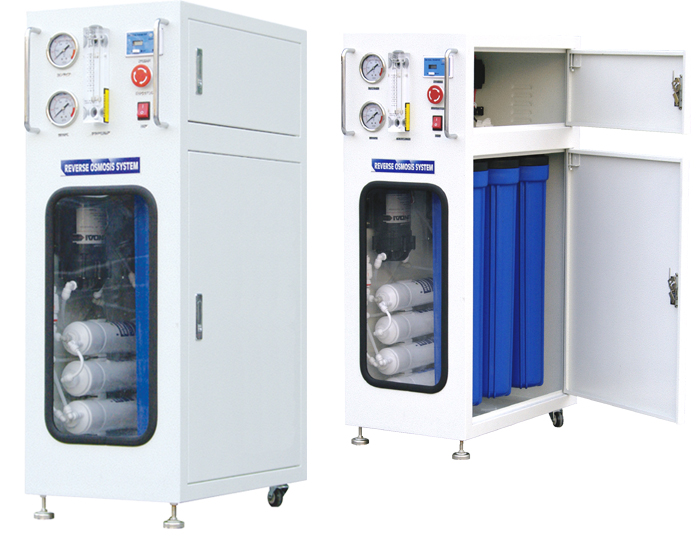

* HCRO-400G COMPONENTS
|
| PART NAME |
DESCRIPTION |
Q'TY |
| PRESSURE GAUGE |
Measure Range : 0~1 Mpa |
2 |
| FLOW METER |
0~150 LPH (Liter Per Hour) |
1 |
| TDS METER |
Raw water & Drinking water |
1 |
| EMERGENCY SWITCH |
DC : 24V / 12A, AC : 250V / 6A |
1 |
| ON-OFF SWITCH |
250V / 16A |
1 |
| CIRCUIT BREAKER |
MCCB: Molded case circuit breaker. 10A |
1 |
| AC-DC Adaptor |
110-240V, 50~60Hz, 5.0A (for RO PUMP) |
1 |
| AUTO Flushing |
Auto flushing controller |
1 |
| SOLENOID VALVE |
DC 24C, 1/4" |
2 |
| LOW PRESSURE S/W |
1/4" |
1 |
| HIGH PRESSURE S/W |
1/4" |
1 |
| CHECK VALVE |
1/4" |
3 |
| FLOW RESTRICTOR |
Control Valve |
1 |
| RO PUMP |
DC24V, 1.8A, 120~140PSI |
2 |
| BALL VALVE |
Manual Flushing valve (for Carbon Filter Flushing) |
1 |
| MEMBRANE |
150G |
3 |
|
* HCRO-600G COMPONENTS
|
| PART NAME |
DESCRIPTION |
Q'TY |
| PRESSURE GAUGE |
Measure Range : 0~1 Mpa |
2 |
| FLOW METER |
0~150 LPH (Liter Per Hour) |
1 |
| TDS METER |
Raw water & Drinking water |
1 |
| EMERGENCY SWITCH |
DC : 24V / 12A, AC : 250V / 6A |
1 |
| ON-OFF SWITCH |
250V / 16A |
1 |
| CIRCUIT BREAKER |
MCCB: Molded case circuit breaker. 10A |
1 |
| AC-DC Adaptor |
110-240V, 50~60Hz, 3.0A (for RO PUMP) |
1 |
| AUTO Flushing |
Auto flushing controller |
1 |
| SOLENOID VALVE |
DC 24C, 1/4" |
2 |
| LOW PRESSURE S/W |
1/4" |
1 |
| HIGH PRESSURE S/W |
1/4" |
1 |
| CHECK VALVE |
1/4" |
3 |
| FLOW RESTRICTOR |
Control Valve |
1 |
| RO PUMP |
DC24V, 0.9A, 70-90PSI |
2 |
| BALL VALVE |
Manual Flushing valve (for Carbon Filter Flushing) |
1 |
| MEMBRANE |
300G |
2 |
|
* HCRO-900G COMPONENTS
|
| PART NAME |
DESCRIPTION |
Q'TY |
| PRESSURE GAUGE |
Measure Range : 0~1 Mpa |
2 |
| FLOW METER |
0~150 LPH (Liter Per Hour) |
1 |
| TDS METER |
Raw water & Drinking water |
1 |
| EMERGENCY SWITCH |
DC : 24V / 12A, AC : 250V / 6A |
1 |
| ON-OFF SWITCH |
250V / 16A |
1 |
| CIRCUIT BREAKER |
MCCB: Molded case circuit breaker. 10A |
1 |
| AC-DC Adaptor |
110-240V, 50~60Hz, 3.0A (for RO PUMP) |
1 |
| AUTO Flushing |
Auto flushing controller |
1 |
| SOLENOID VALVE |
DC 24C, 1/4" |
2 |
| LOW PRESSURE S/W |
1/4" |
1 |
| HIGH PRESSURE S/W |
1/4" |
1 |
| CHECK VALVE |
1/4" |
3 |
| FLOW RESTRICTOR |
Control Valve |
1 |
| RO PUMP |
DC24V, 0.9A, 70-90PSI |
2 |
| BALL VALVE |
Manual Flushing valve (for Carbon Filter Flushing) |
1 |
| MEMBRANE |
300G |
3 |
|
* HCRO-1200G COMPONENTS
|
| PART NAME |
DESCRIPTION |
Q'TY |
| PRESSURE GAUGE |
Measure Range : 0~1 Mpa |
2 |
| FLOW METER |
0~150 LPH (Liter Per Hour) |
1 |
| TDS METER |
Raw water & Drinking water |
1 |
| EMERGENCY SWITCH |
DC : 24V / 12A, AC : 250V / 6A |
1 |
| ON-OFF SWITCH |
250V / 16A |
1 |
| CIRCUIT BREAKER |
MCCB: Molded case circuit breaker. 10A |
1 |
| AC-DC Adaptor |
110-240V, 50~60Hz, 5.0A (for RO PUMP) |
1 |
| AUTO Flushing |
Auto flushing controller |
1 |
| SOLENOID VALVE |
DC 24C, 1/4" |
2 |
| LOW PRESSURE S/W |
1/4" |
1 |
| HIGH PRESSURE S/W |
1/4" |
1 |
| CHECK VALVE |
1/4" |
3 |
| FLOW RESTRICTOR |
Control Valve |
1 |
| RO PUMP |
DC24V, 1.8A, 120~140PSI |
2 |
| BALL VALVE |
Manual Flushing valve (for Carbon Filter Flushing) |
1 |
| MEMBRANE |
600G |
2 |
|

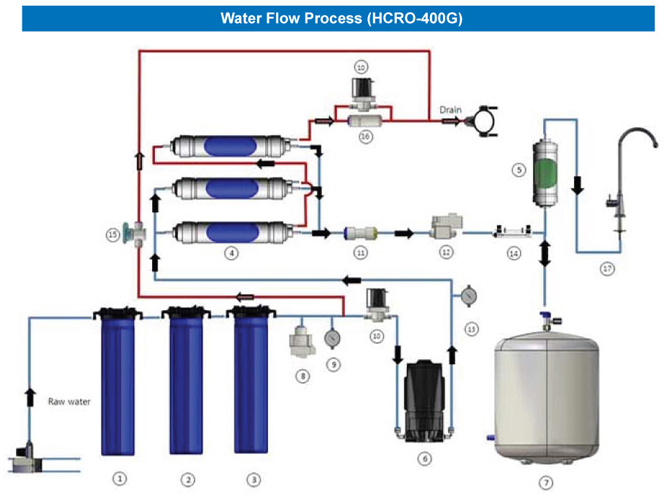

| NO |
DESCRIPTION |
| 1 |
20" Blue Housing / PP 20" |
| 2 |
20" Blue Housing / GAC 20" |
| 3 |
Blue Housing / CTO 20" |
| 4 |
RO Membrane |
| 5 |
Post Carbon Filter |
| 6 |
Pump |
| 7 |
Pressure Tank |
| 8 |
Low Pressure Switch |
| 9 |
Inlet Water Pressure Gauge |
| 10 |
Solenoid Valve |
| 11 |
Check Valve |
| 12 |
High Pressure Switch |
| 13 |
RO Pump Pressure Gauge |
| 14 |
Flow Meter |
| 15 |
Flushing Valve |
| 16 |
Flow Restrictor |
| 17 |
Faucet |
|
|
|
| NO |
DESCRIPTION |
| 1 |
20" Blue Housing / PP 20" |
| 2 |
20" Blue Housing / GAC 20" |
| 3 |
Blue Housing / CTO 20" |
| 4 |
Low Pressure Switch |
| 5 |
Pressure Gauge (Inlet Water) |
| 6 |
Solenoid Valve (Inlet Water) |
| 7 |
Pump |
| 8 |
Pump Pressure Gauge |
| 9 |
Flushing Valve |
| 10 |
300 GPD RO Membrane |
| 11 |
Check Valve |
| 12 |
Flow Meter |
| 13 |
High Pressure Switch |
| 14 |
PCB Filter |
| 15 |
Faucet |
| 16 |
Tank |
| 17 |
Flow Restrictor |
| 18 |
Auto Flushing Solenoid Valve |
|
|
|

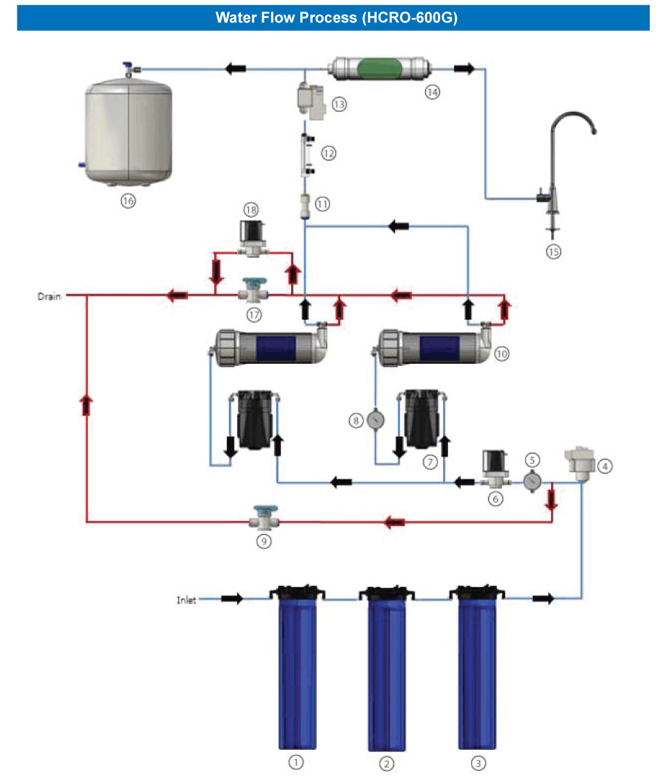

| NO |
DESCRIPTION |
| 1 |
20" Blue Housing / PP 20" |
| 2 |
20" Blue Housing / GAC 20" |
| 3 |
Blue Housing / CTO 20" |
| 4 |
Low Pressure Switch |
| 5 |
Pressure Gauge (Inlet Water) |
| 6 |
Solenoid Valve (Inlet Water) |
| 7 |
Pump |
| 8 |
Pump Pressure Gauge |
| 9 |
Flushing Valve |
| 10 |
300 GPD RO Membrane |
| 11 |
Check Valve |
| 12 |
Flow Meter |
| 13 |
High Pressure Switch |
| 14 |
PCB Filter |
| 15 |
Faucet |
| 16 |
Tank |
| 17 |
Flow Restrictor |
| 18 |
Auto Flushing Solenoid Valve |
|

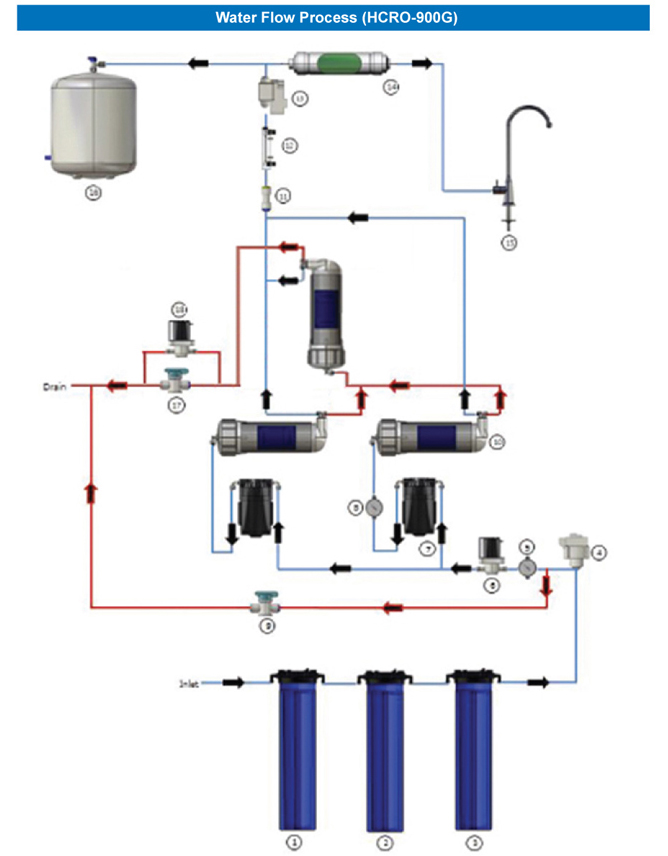

| NO |
DESCRIPTION |
| 1 |
20" Blue Housing / PP 20" |
| 2 |
20" Blue Housing / GAC 20" |
| 3 |
Blue Housing / CTO 20" |
| 4 |
Low Pressure Switch |
| 5 |
Pressure Gauge (Inlet Water) |
| 6 |
Solenoid Valve (Inlet Water) |
| 7 |
Booster Pump(300G) x 2 |
| 8 |
Pump Pressure Gauge |
| 9 |
Flushing Valve |
| 10 |
600GPD RO Membrane Filter x 2 |
| 11 |
Check Valve |
| 12 |
Flow Meter |
| 13 |
High Pressure Switch |
| 14 |
PCB Filter |
| 15 |
Faucet |
| 16 |
Tank |
| 17 |
Flow Restrictor |
| 18 |
Auto Flushing Solenoid Valve |
|
