WATER LEAK DETECTOR

WACO Corp LEAK DETECTOR

Product
Model No. HW-PA 101 HW-PA 102


Feature
- Economic maintain cost due to no needed electricity.
- It can be installed and used for products such as Water purifiers which require a function that can sense a leakage of water.
- It can be installed in every place due to no needed electricity.
- It is a semi permanent product and convenient to use that a compressed fiber is only needed to replace.



Water Leak Detector User Guide

Patent 10-2010-0009764

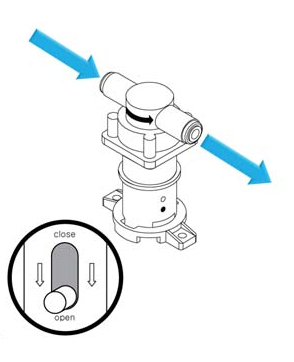

[Usually]

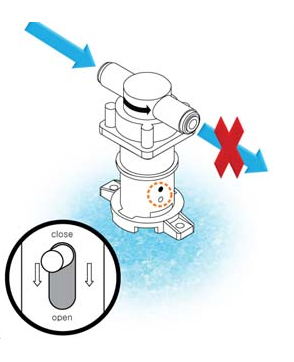

The operating switch on the other side shall be located on the position "OPEN" and all functions can work in normal operation condition. 		[Water leakage]

The switch moves to "CLOSE" and the raw water supplied is cut off.

[Appropriate Measure]

1. Turn off the raw water supply valve.
2. Eliminate the cause of water leakage.

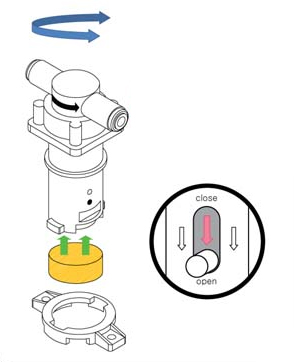

3. Detaching the water leakage detector by turning.
4. Changing compressed textile.
* Before changing compressed textile, completely eliminate the water on the botton.

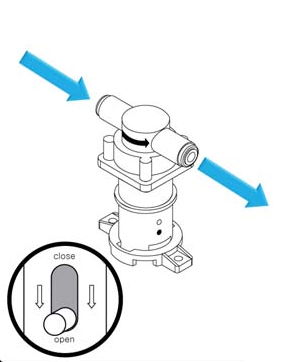

5. Changing the switch down of water leak detector on the other side as follows. 		[Return]

Open the raw water supply valve, and it makes the function of water leakage detector activated.

CAUTION : The direction of inlet water must be same as the direction of arrow.
